GS950T

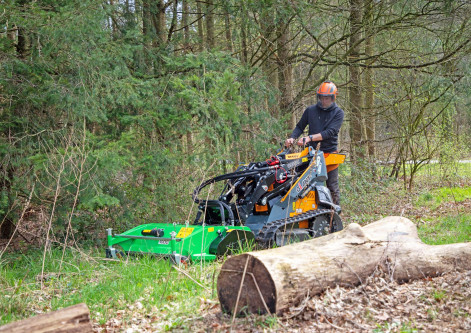

TOBROCO-GIANT’s skid steer is also known as the “hop-on-hop-off machine”. It has all the features that are important for the user to carry out work as efficiently, safely and productively as possible. The skid on tracks has more traction than the wheeled skid and it distributes the pressure on the ground better. The machine’s tipping point has been changed, which increases the tipping load and makes it a more powerful compact machine.

Download brochure here

Request price Configure

1x double acting hydraulic function on lifting arm, mechanically driven

Adjustable hip bracket

Single-side hydraulic hold on first double acting function

Parallel guidance on lifting arm

Counterweight integrated into the mudguards

Height-adjustable driver’s plateau

Hand throttle

Oil cooler

Lifting eyes

Tipping loads of the machine

The table shows the tipping loads at different positions of the machine. The tipping load is the maximum weight the machine can lift while remaining stable and not tipping. The actual tipping load depends on the configuration of the machine, such as various options, attachments and working position.

Specifications

Service weight ¹ 1036 kg

Tipping Load ² 829 kg

Engine power 25 hp

Length without bucket 1675 mm

Standard rubber tracks Tracks 180

Engine Kubota D902

Fuel tank capacity 23 L

Type Diesel

Lifting capacity 576 kg

Lifting height ³ 2030 mm

Width on standard tires 900 mm
